BUY THE Cybex OG Plate-Loaded Squat Press [White] FROM FIT CULT GYM SUPPLY

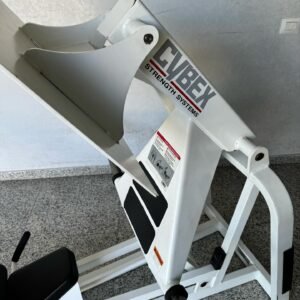

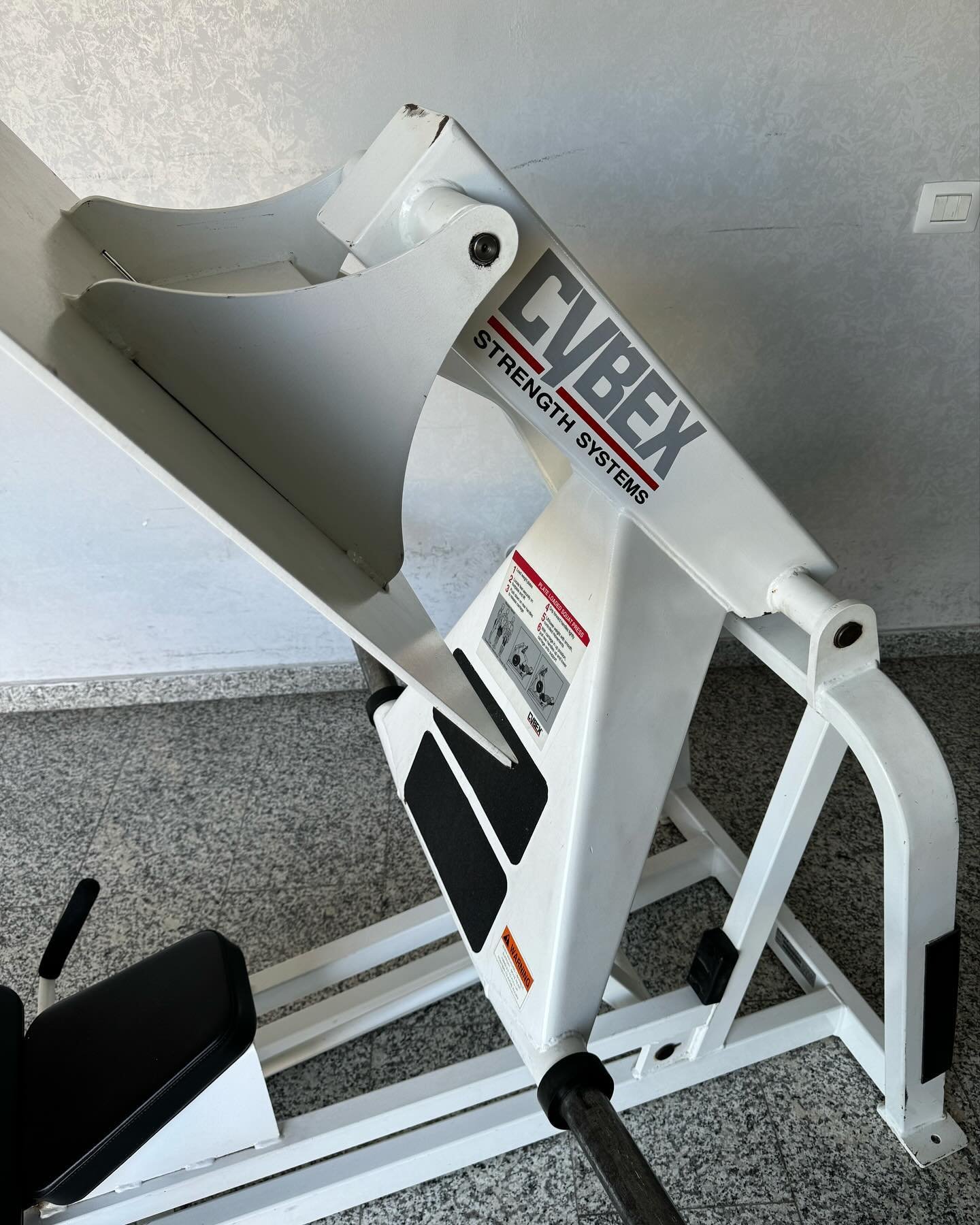

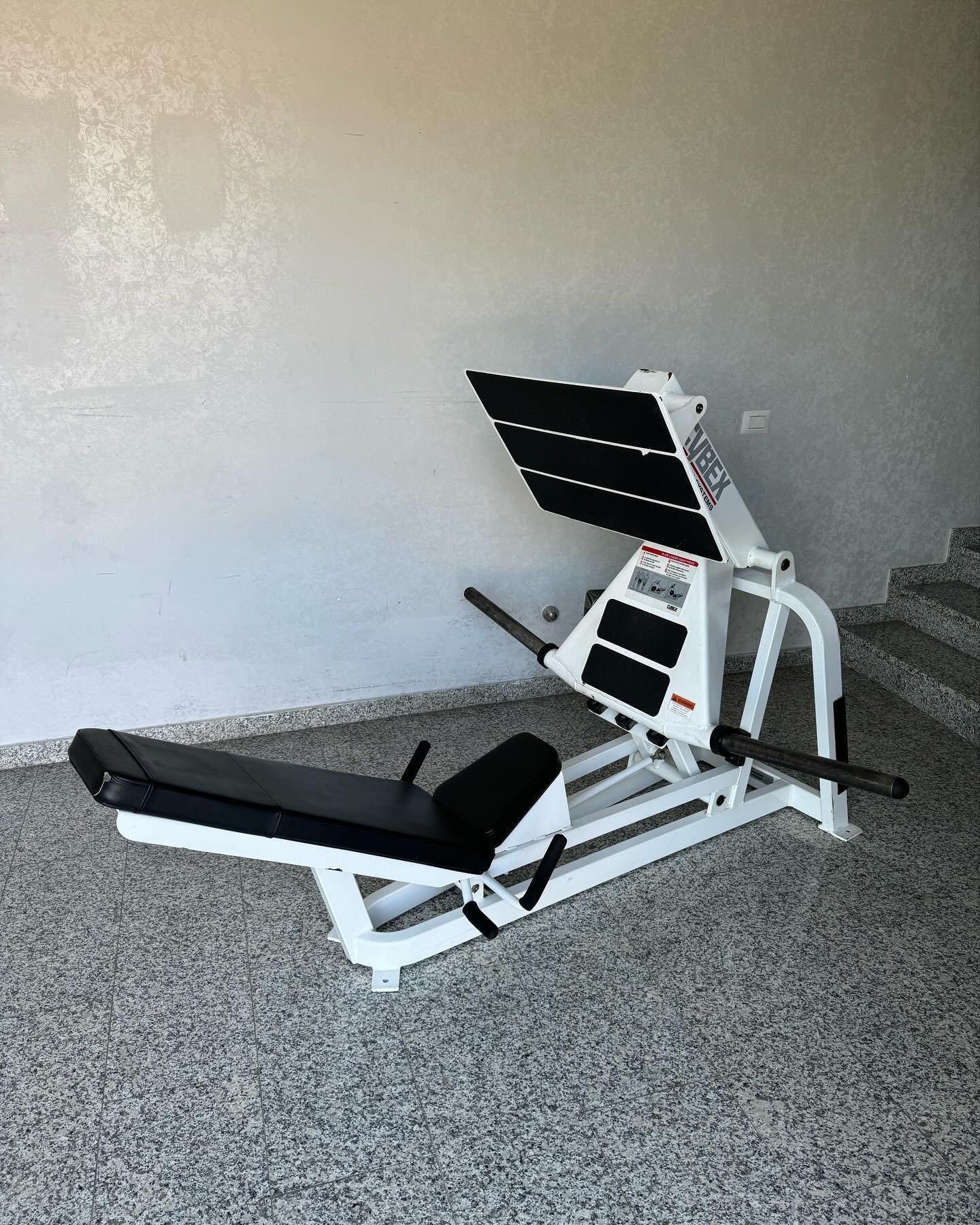

The Cybex OG Plate-Loaded Squat Press is widely regarded by strength coaches, commercial gym owners, and bodybuilders as one of the most effective lower-body strength machines ever designed. If you are searching for a true commercial cybex leg press, this iconic piece delivers unmatched biomechanical performance. Unlike standard linear sliding sled machines, this cybex plate loaded squat press utilizes a patented 4-bar linkage mechanism and direct linkage system. This curvilinear motion mimics the natural arc of a free-weight barbell squat while keeping your lower back completely supported.

Available in a classic white powder coat finish, this plate loaded squat press machine has been fully restored to mint condition by the expert technicians at Fit Cult Gym Supply. Finding an authentic cybex squat press for sale in this condition is rare—making this leg press machine cybex unit a valuable addition to high-volume commercial clubs, private athletic training facilities, and elite personal training studios.

cybex squat press Key Features & Biomechanical Excellence

• Four-Bar Linkage Articulation: Engineered specifically for the cybex squat press machine, this drive linkage keeps the articulating footplate in optimal alignment with your ankles as your knees flex, preventing heel lift and joint strain.

• Direct Linkage Variable Resistance: This plate loaded squat press generates dynamic mechanical tension. As you drive through your heels, resistance increases where your glutes and quads are strongest and eases off at the deepest part of the movement.

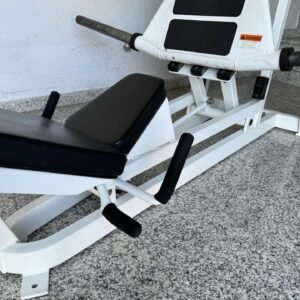

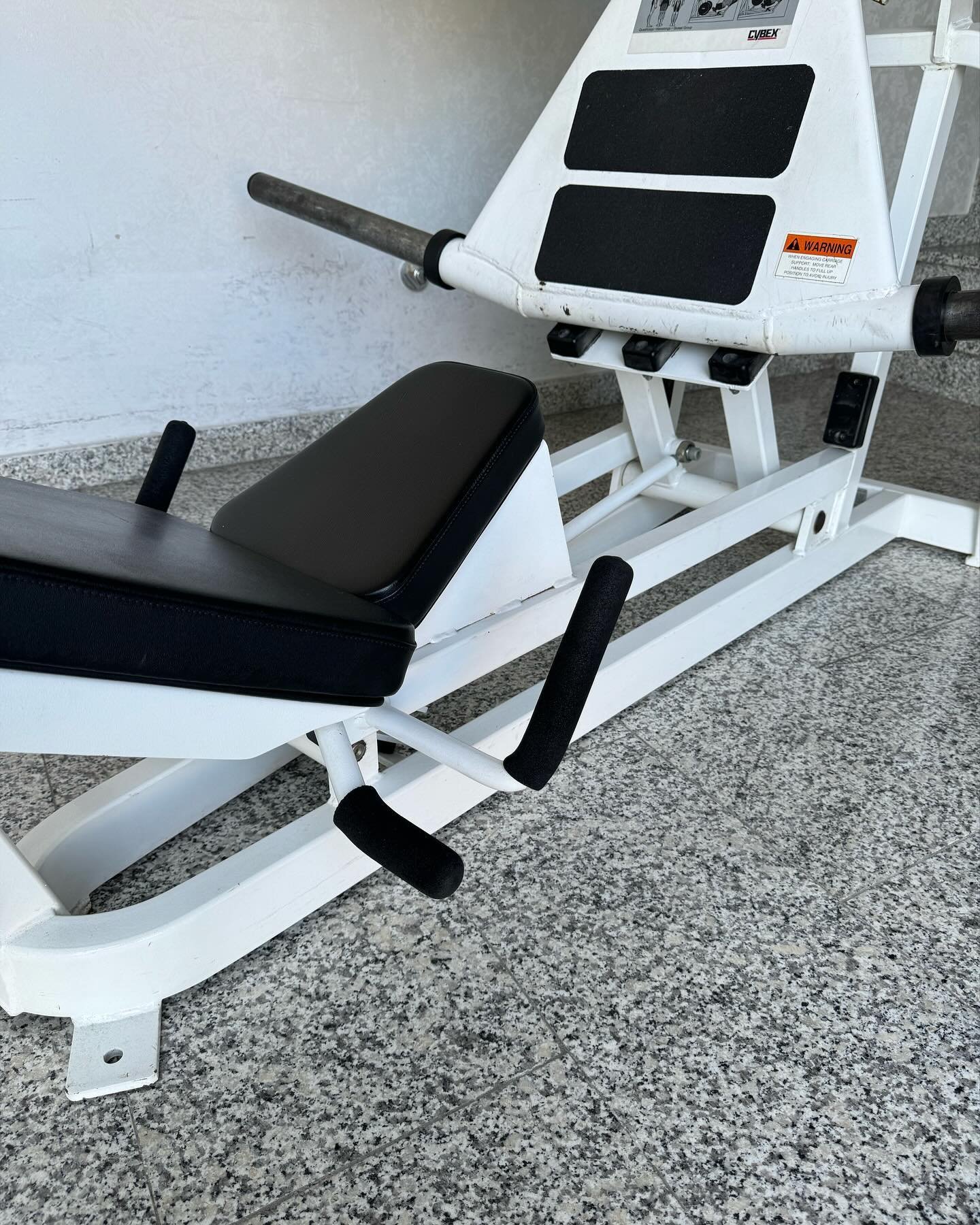

• Minimal Lumbar Strain: Traditional linear cybex leg press machine designs can cause dangerous pelvic tilting (butt-wink) under heavy loads. The ergonomically angled back pad on this cybex plate loaded leg press locks your pelvis into a safe position to isolate the legs without overloading the lower spine.

• Heavy-Duty Olympic Weight Horns: Load up your heaviest sets using standard 2-inch Olympic leg press plate iron or rubber weight plates on dual stainless steel loading pegs.

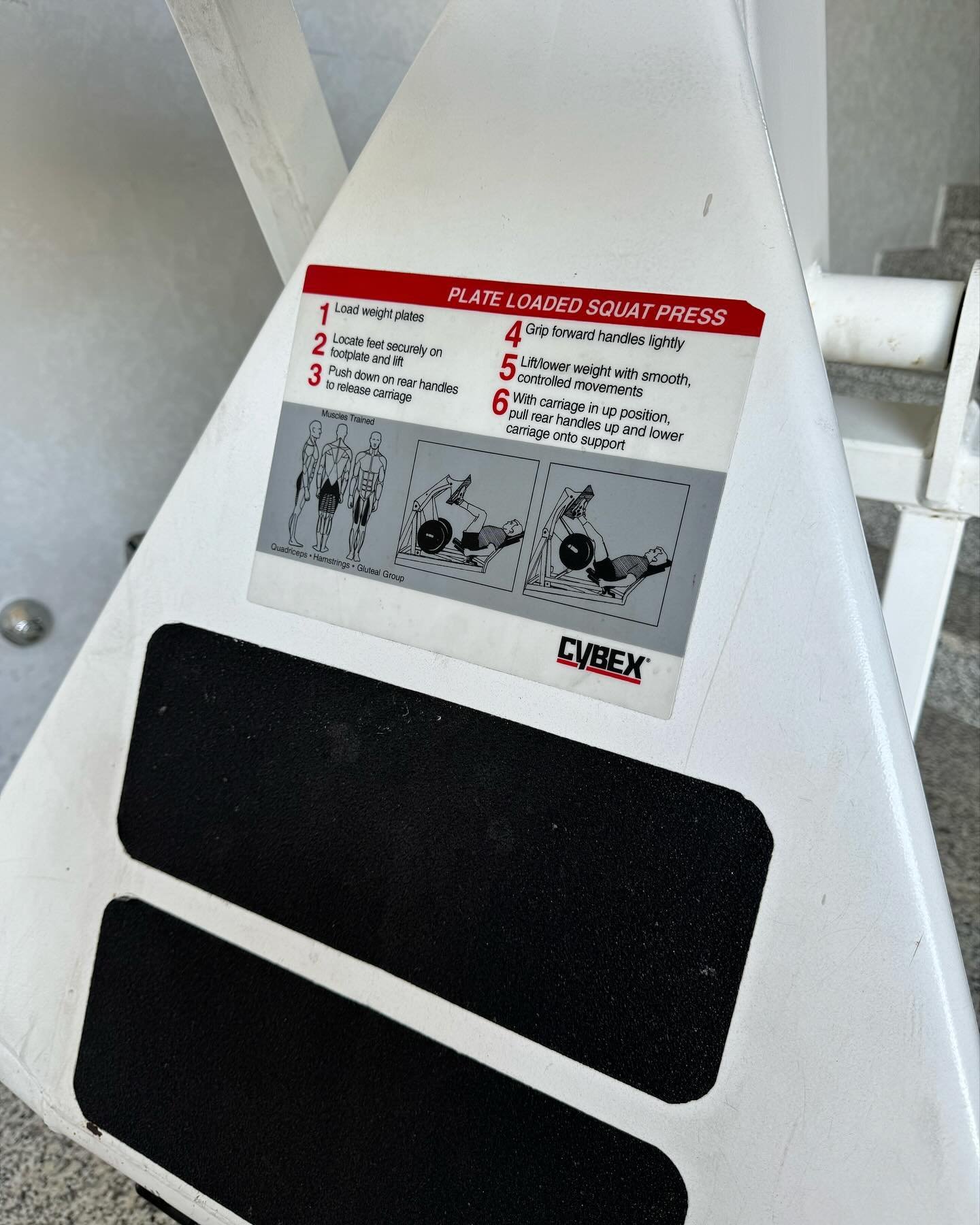

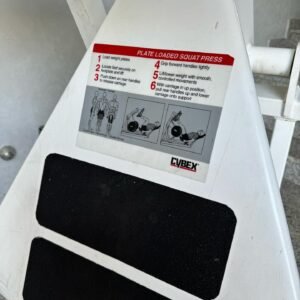

• Dual Hand Safety Lockouts: Easy-to-reach disengagement levers let athletes lock out heavy loads safely without needing a spotter.

• Commercial Steel Frame: Built with industrial-grade 11-gauge steel, this heavy-duty frame ensures maximum stability under high-capacity training demands.

Cybex Squat Press vs. Standard 45° Leg Press & Cybex Hack Squat

Before choosing a squat press machine for your gym layout, compare how this leg press cybex unit compares to other lower-body commercial machines:

Feature	Cybex OG Plate Loaded Squat Press	Standard 45° Linear Leg Press	Cybex Hack Squat
Path of Motion	Curvilinear Arc: 4-bar linkage matches natural human squatting motion.	Straight Line: Sled slides along a rigid 45-degree straight rail track.	Linear Incline: Back rests against sliding shoulder carriage.
Lumbar Stress	Low: Back remains flat against support pad throughout entire rep.	Moderate to High: Potential lumbar rounding at the bottom of the rep.	Moderate: Shoulder loading creates downward compression on spine.
Ankle Tracking	Dynamic Adjustment: Articulating footplate pivots naturally with knee angle.	Fixed Footplate: Ankle tightness restricts pressing depth.	Fixed Angle: Higher shear stress placed across knees if mobility is limited.
Machine Type	Cybex Plate Loaded Squat Press	Standard 45-Degree Sled Press	Hack Squat Cybex
Primary Muscle Hit	Full Quad Sweep, Gluteus Maximus, Hamstrings	Quads & Glutes	Isolated Quadriceps Hypertrophy

Targeted Muscles & Lower-Body Applications

The cybex plate loaded squat press machine is engineered for overall leg hypertrophy and maximum compound power:

• Primary Muscles Targeted: Quadriceps (Vastus Lateralis, Rectus Femoris, Vastus Medialis), Gluteus Maximus

• Secondary Muscles Targeted: Hamstrings, Adductor Magnus, Calves (Gastrocnemius & Soleus)

• Training Versatility:

  • Heavy Strength Protocols: Blast through plate-loaded sets with confidence thanks to dual mechanical safety stops.

  • Targeted Stance Variations: Use a wide sumo stance, narrow quad focus, or high foot placement across the expansive footplate.

  • Joint-Friendly Rehabilitation: Train around low-back limitations while still getting full quadriceps stimulation.

Cybex plate loaded squat press Specifications & Technical Details

Note for Gym Owners: Specifications below represent standard Cybex manufacturer specs for this series (Model 16150-Series). Please confirm doorway dimensions before ordering freight delivery.

Specification	Details
Product Name	Cybex OG Plate-Loaded Squat Press [White]
Manufacturer	Cybex International
Machine Category	Strength Equipment / Plate-Loaded / Cybex Leg Press
Condition	Mint (Fully Serviced, Restored, & Inspected)
Frame Color	Classic White Powder Coat
Resistance Mechanism	Plate Loaded Squat Press (Standard 2″ Olympic Plates)
Frame Construction	Heavy-Gauge 11-Gauge Commercial Steel
Upholstery	High-Density Commercial Black Vinyl
Movement Linkage	Direct 4-Bar Leverage Linkage
Starting Sled Weight / Base Weight	Approx. 45–55 lbs (Unloaded linkage mechanism)
Maximum Load Capacity	810 lbs (367 kg) total plate capacity
Overall Machine Weight	Approx. 355 lbs (161 kg)
Machine Dimensions (L x W x H)	82″ L x 67″ W x 53″ H (208 cm x 170 cm x 135 cm)
Price	$2,850.00

The squat press machine condition & Fit Cult Assurance

When buying pre-owned strength equipment from Fit Cult Gym Supply, our Mint Condition guarantee means your machine receives full professional servicing:

1. Frame Inspection: Welding joints, safety catches, and frame structure are thoroughly tested for zero mechanical wear.

2. Bearing & Linkage Servicing: All pivot bearings, linkage arm bushings, and handle releases are inspected, lubricated, or replaced for silent, fluid reps.

3. Cosmetic Refinishing: Powder-coated surfaces are cleaned, detailed, and touched up in bright commercial white.

4. Upholstery Check: Contoured back and head cushions are inspected to ensure dense, tear-free commercial support.

Ideal For

• Commercial Gym Owners: Offer your members a sought-after cybex leg press machine that stands out on your free-weight floor.

• Private Strength Facilities & Athletic Clubs: Give athletes a heavy cybex squat press option that develops explosive lower-body power without unnecessary back strain.

• Home & Garage Gym Builders: Upgrade your workout space with a commercial-grade plate loaded squat press built to last decades.

Frequently Asked Questions

What is the cybex squat press starting weight without plates loaded?

The cybex squat press starting weight (unloaded sled/footplate assembly) is approximately 45 to 55 lbs. Because of the 4-bar mechanical linkage system, the cybex plate loaded squat press starting weight feels significantly smoother and lighter at initial drive compared to a standard 45-degree 100-lb sliding sled.

How does the cybex leg press sled weight compare to a 45-degree leg press machine?

On a standard linear leg press, the cybex leg press sled weight moves purely along rollers on a straight diagonal track (often starting at 75–100 lbs). On the cybex plate loaded squat press, the cybex plate loaded squat press base weight is lighter (approx. 45–55 lbs) because the leverage arm swings along an arc. This allows lifters of all strength levels to perform comfortable warm-ups before adding heavy leg press plate loads.

Is this cybex squat press machine better for bad lower backs than a hack squat cybex?

Yes. On a hack squat cybex unit, heavy weight rests directly across your shoulders, placing spinal compression forces on your back. The cybex squat press machine features a fixed, ergonomic seat back that keeps your lumbar spine locked in place, allowing you to press heavy weight safely without compressing your spinal discs.

Can you squat in the Cybex military press?

No. A military press machine is designed exclusively for overhead shoulder training. The cybex squat press shown here is a dedicated lower-body cybex plate loaded leg press made for leg pressing, squatting movements, and calf extensions. Attempting to squat on an upper-body shoulder press is unsafe.

How is the Cybex plate loaded leg press shipped?

Fit Cult Gym Supply ships commercial strength machinery nationwide via freight carrier. Your cybex leg press will arrive securely strapped, shrink-wrapped, and palleted. Custom freight quotes and liftgate services are available upon checkout.

Ready to Upgrade Your Leg Room?

Equip your facility with one of the most respected lower-body machines in fitness history—the Cybex OG Plate-Loaded Squat Press [White].

• Questions About Delivery or Facility Layout?

  Contact the Fit Cult Gym Supply Team today for custom freight quotes, facility planning assistance, or stock availability.

• Explore More Commercial Gym Machinery:

  Discover our full selection of Commercial Strength Equipment and Racks & Rigs.
